Caterpillar2025 Model

Caterpillar D8R

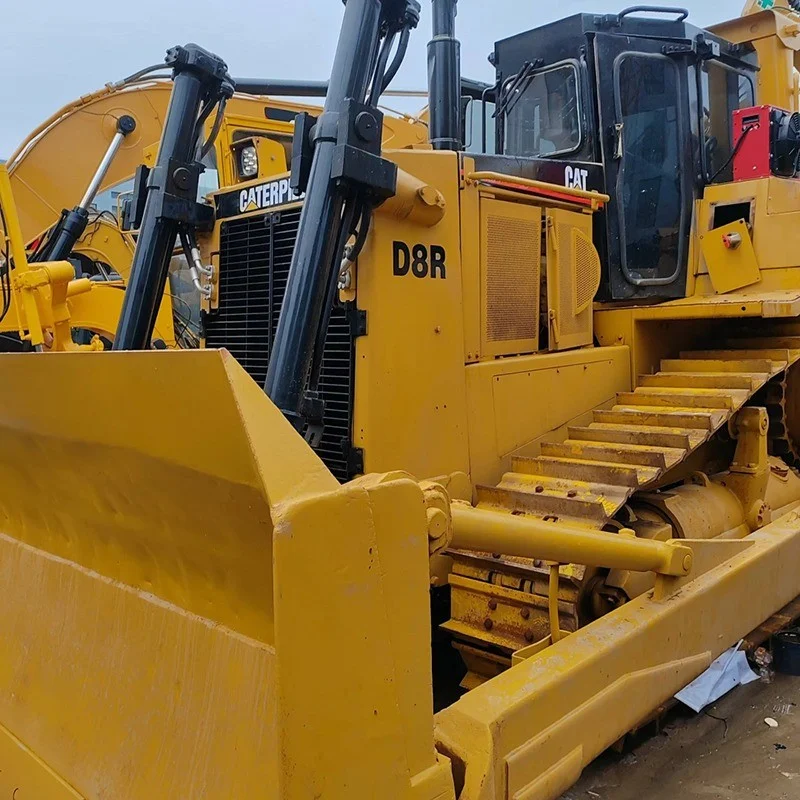

Used Caterpillar Caterpillar D8R Bulldozer for sale from China - main product view
1 / 5

Verified Condition Guarantee

Tested and verified by experts.

Original Engine & Pump Undercarriage: 95% New

Technical Specifications

EngineCAT 3406C
Power228 kW (305 HP)
Hours1200 hrs
Weight37.5 Tons
Bucket11.7 m³ (Blade)
Main sourceVerified Yard

Full Technical Data

ManufacturerCaterpillar
ModelCaterpillar D8R
CategoryBulldozer
Year of Manufacture2025
Operating Hours (ECU verified)1200 hrs
Operating Weight37.5 Tons
Engine ModelCAT 3406C
Engine Power228 kW (305 HP)
Emissions StandardTier 3 / China Stage III
Fuel TypeDiesel
Fuel Tank Capacity400 L
Hydraulic System Pressure34.3 MPa
Transmission TypeFull Hydrostatic
Drive TypeCrawler / Tracked
Ground Clearance440 mm
Undercarriage Condition95% New
Cabin TypeROPS / FOPS certified enclosed cab with air conditioning
Country of OriginMade in China (or original OEM country) — refurbished and inspected in Shanghai
Inspection CertificateHMP 120-Point Pre-Purchase Inspection Report (12 pages, date-stamped photos)
Warranty90-day mechanical warranty (engine, hydraulic pump, transmission) | Extended packages available
HS Code (Global Export)8429.11
Blade TypeStraight (S) / Semi-U (SU) / U-Blade optional
Blade Capacity4.5 m³
Blade Width3,460 mm
Drawbar Pull38,500 kgf
Ground Pressure68 kPa
Track TypeSealed and Lubricated (SALT)
Track Shoes Width560 mm (standard grouser)
Number of Track Rollers (each side)7
Top Travel Speed11 km/h
Fuel Consumption (dozing)18–25 L/h

Inquire via WhatsApp

Chat directly with our yard specialist for the best wholesale CIF/FOB price.

Chat Now

Product Overview

Core Technical Specifications

Specification Detail
Engine ModelCAT 3406C
Engine Power228 kW (305 HP)
Operating Weight37.5 Tons
Top Travel Speed11 km/h
Fuel Tank Capacity400 L
Hydraulic System Pressure34.3 MPa
Year of Manufacture2025
Operating Hours (ECU verified)1200 hrs
Emissions StandardTier 3 / China Stage III
Fuel TypeDiesel

Used Caterpillar D8R — 2025 unit, 1200 hours, CAT 3406C at 228 kW (305 HP), 37.5 Tons operating weight. Ships CIF from HMP Shanghai under HS 8429.11. 120-point inspection and 90-day warranty included.

1. Model Positioning and Buyer Fit

The Caterpillar D8R, a Model Year 2025 bulldozer in the 37.5 Tons class, is engineered around the proven CAT 3406C platform at 228 kW (305 HP). Its typical deployment envelope covers road embankment building and mining haul-road construction — reliable duty cycles under continuous 8-10 hour daily operation across the humid tropics, dry deserts, and high-altitude sites where HMP's buyers actually work.

2. Powertrain, Hydraulics, and Field Performance

This Caterpillar D8R runs the CAT 3406C at 228 kW (305 HP), feeding hydraulic pumps that HMP's inspection team measured against Caterpillar OEM baseline pressure. Caterpillar ACERT engine technology and Cat HYDO Advanced hydraulic system compatibility mean this unit interfaces natively with Cat parts availability at 92+ authorized dealers worldwide. Standard bucket / attachment: 11.7 m³ (Blade). Cylinder rod chrome condition, hose integrity, and swing-bearing radial play were all documented with photographs during the inspection.

3. Regional Deployment References

HMP's bulldozer exports concentrate on mining-support subcontractors (Zambian copper belt, Angolan iron-ore, Indonesian coal), landfill operations, and land-clearing firms across Africa and Southeast Asia. Specific buyer references for your target market available on request.

4. CIF Shipping from Shanghai

Container securing on this Caterpillar D8R: HMP's certified lashing team uses double-crossed steel chain plus grade-70 transport binders on all four corners, wooden dunnage under tracks to prevent side-slip, and shrink-wrap covers over engine bay and cabin. ISO 3874 lashing standard is followed and documented with photographs.

5. Warranty, Parts, and After-Sale Service

What warranty covers on the Caterpillar D8R: engine short-block failure not caused by operator misuse, hydraulic main pump internal failure, swing gearbox planetary failure, and undercarriage sprocket/idler failure due to manufacturing defect. What it does not cover: wear parts (filters, hoses, bushings, tracks), operator error damage, or fuel-related engine damage.

6. Destination Country Import Compliance

Gulf Cooperation Council (GCC) unified customs on this Caterpillar D8R: UAE, Saudi Arabia, Kuwait, Bahrain, Qatar, and Oman apply harmonized 5% duty on construction machinery under GCC Common Tariff. VAT rates vary by destination country: UAE and Bahrain 5%, Saudi Arabia and Oman 5%, Qatar 0% (no VAT), Kuwait 0% pending implementation.

7. HMP Pre-Purchase Inspection

Engine compression assessment: HMP performs cold-and-hot compression tests on each cylinder of this Caterpillar D8R using a calibrated Snap-On compression gauge with adapter kit sized to the specific engine. Cylinder-to-cylinder variance greater than 15% triggers a further leak-down test — results included in the inspection report.

Close-up Mechanical Details

Caterpillar D8R detail 1
Caterpillar D8R detail 2
Caterpillar D8R detail 3
Caterpillar D8R detail 4

Key Features

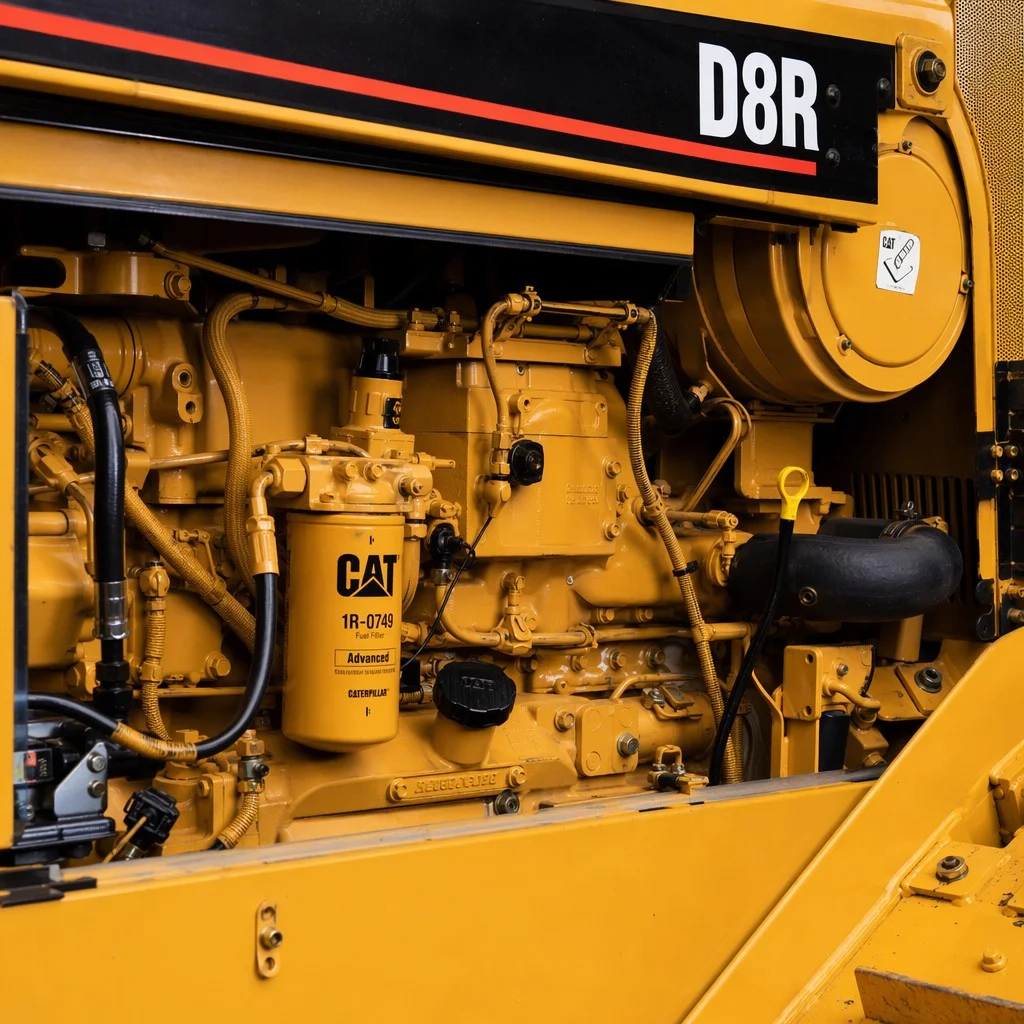

  • Legendary CAT 3406C Engine: High-torque performance with unmatched fuel efficiency.
  • 95% New Undercarriage: Heavy-duty track links and shoes with virtually zero wear.
  • Planetary Power Shift Transmission: Smooth speed changes and high reliability under load.

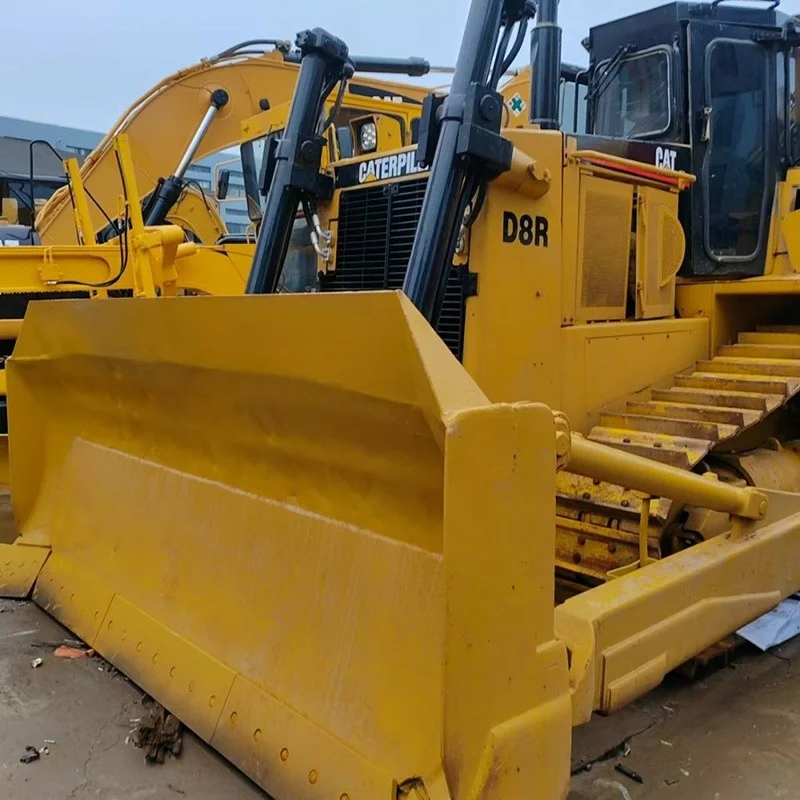

  • Reinforced SU-Blade: Engineered for high-volume earthmoving and long service life.
  • Certified 120-Point Audit: Comprehensive structural and mechanical health report included.

Why Source From HMP?

  • Direct Yard Sourcing: We eliminate middlemen to provide the best market value globally.
  • Technical Mastery: Every machine is inspected and serviced by Caterpillar-certified engineers.
  • Global Logistics Network: Professional container/flat-rack shipping to 50+ countries.
  • Lifetime Support: 24/7 access to maintenance guidance and original spare parts.

Frequently Asked Questions

QIs the engine original or reconstructed?

We guarantee 100% original Caterpillar 3406C engines with factory seals and verified serial numbers.

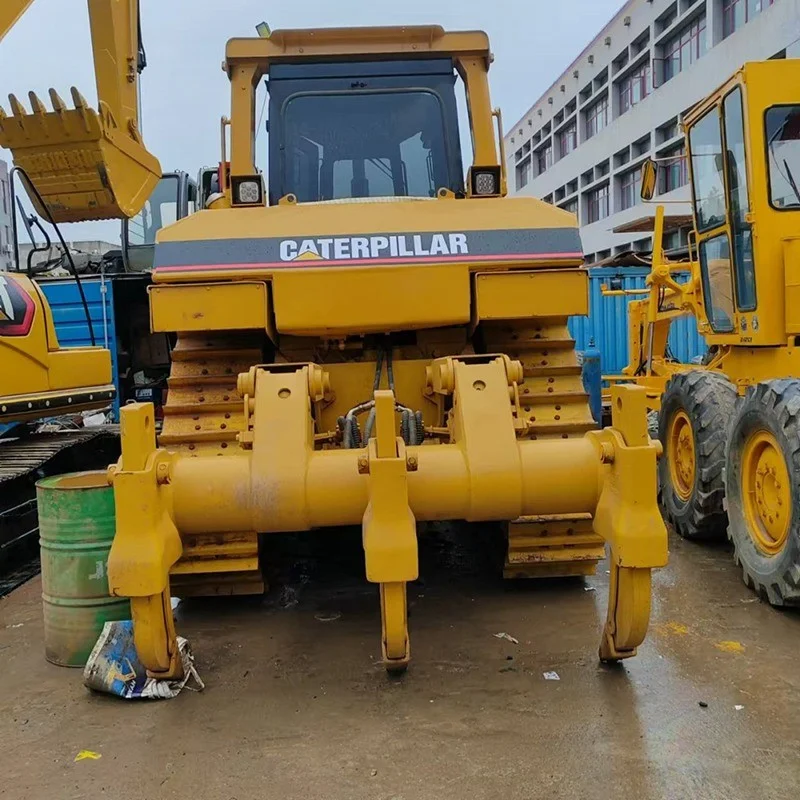

QDoes it come with a ripper?

Yes, this specific unit is equipped with a heavy-duty single-shank or multi-shank ripper depending on your requirement.

QHow do you verify the low 1200 hours?

We provide digital ECM diagnostic reports and verify the hour meter against physical wear patterns on pins and bushings.

QDo you handle shipping to Africa or the Middle East?

Yes, we handle all export declarations and international shipping to ports like Lagos, Jebel Ali, and Durban.

QWhat is the typical shipping lead time?

The machine is ready for departure within 7-10 days after payment confirmation.

QCan I request a live video walkthrough?

Absolutely! We offer WhatsApp video inspections to show engine startup, blade response, and track movement.
